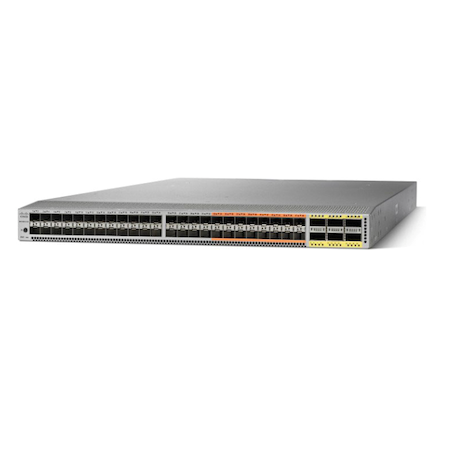

ویژگی های لایه 2 سوئیچ Cisco Nexus N5K-C5672UP-16G

•  Layer 2 switch ports and VLAN trunks

•  IEEE 802.1Q VLAN encapsulation

• Support for up to 4000 VLANs

• Support for up to 4000 access control list (ACL) entries

• Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)

• Multiple Spanning Tree Protocol (MSTP) (IEEE 802.1s): 64 instances

• Spanning Tree PortFast

• Spanning Tree root guard

• Spanning Tree Bridge Assurance

• Cisco EtherChannel technology (up to 16 ports per EtherChannel)

• Cisco vPC technology

• vPC configuration synchronization

• vPC shutdown

• Link Aggregation Control Protocol (LACP): IEEE 802.3ad

• Advanced port-channel hashing based on Layer 2, 3, and 4 information

• Jumbo frames on all ports (up to 9216 bytes)

• Pause frames (IEEE 802.3x)

• Storm control (unicast, multicast, and broadcast)

• Private VLANs

• Private VLAN over trunks (isolated and promiscuous)

• Private VLANs over vPC and EtherChannels

• VLAN remapping

• FabricPath

• EvPC and vPC+ with FabricPath

• Adapter FEX

• Data Center VM-FEX

• Support for up to 24 fabric extenders (Layer 2) with each Cisco Nexus 5672UP, 5672UP-16G, and 56128P Switch

• RDMA over Converged Ethernet (RoCE) using Data Center Bridging (DCB) support (DCB Exchange [DCBX] no drop and priority flow control [PFC])

ویژگی های لایه 3 Cisco Nexus N5K-C5672UP-16G

•  Layer 3 interfaces: Routed ports, switch virtual interface (SVI), port channels, subinterfaces, and port-channel subinterfaces

•  Support for up to 32,000 IPv4 and 8000 IPv6 host prefixes

• Support for up to 8000 multicast routes (IPv4)

• Support for up to 8000 IGMP snooping groups

• Support for 4000 Virtual Routing and Forwarding (VRF) entries

• Support for up to 4096 VLANs

• Equal-Cost Multipathing (ECMP) up to 64 ways

• 4000 flexible ACL entries

• Routing protocols: Static, Routing Information Protocol Version 2 (RIPv2), Enhanced Interior Gateway Routing Protocol (EIGRP), Open Shortest Path First Version 2 (OSPFv2), Border Gateway Protocol (BGP), and Intermediate System-to-Intermediate System (IS-IS)

• IPv6 routing protocols: Static, OPFv3, BGPv6, and EIGRPv6

• IPv6 VRF-lite

• BFD support: OSPFv2, BGPv4, EIGRP, and VRF instances

• Policy-Based Routing (IPv4 and IPv6)

• Hot-Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)

• IP direct broadcast

• vPC+ routing protocol peering

• ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACL Multicast: Protocol Independent Multicast Version 2 (PIMv2) sparse mode, Source-Specific Multicast (SSM), Bidir-PIM, Multicast Source Discovery Protocol (MSDP), IGMPv2 and v3, and Multicast VLAN Registration (MVR)

• VRF: VRF-lite (IP VPN); VRF-aware unicast; and BGP-, OSPF-, RIP-, and VRF-aware multicast

• Unicast Reverse-Path Forwarding (uRFP) with ACL; strict and loose modes

• Jumbo frame support (up to 9216 bytes)

• Support for up to 24 fabric extenders on each Cisco Nexus 5600 10-Gbps platform switch
