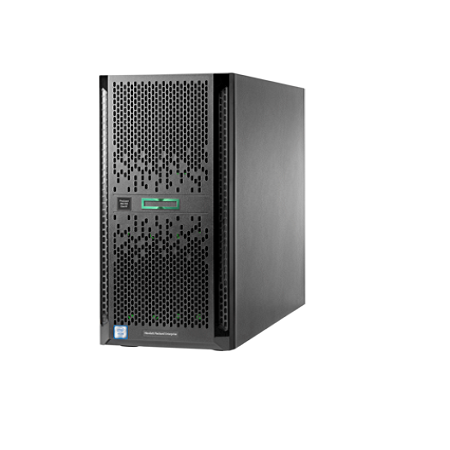

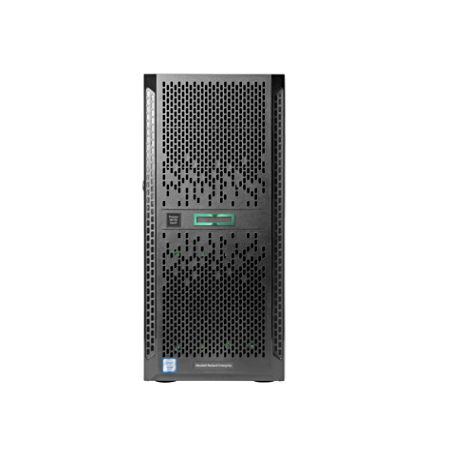

E5-2600 v3 series Processors
Entry Processors
NOTE: All support up to 1600MHz DDR4 memory speeds.
Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit
Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit
Base Processors
NOTE: All support up to 1866MHz DDR4 memory speeds.
Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit
Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit
Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit
Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) Processor Kit
Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) Processor Kit
Performance Processors
NOTE: All support up to 2133MHz DDR4 memory speeds.
Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit
Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) Processor Kit
Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.
Intel® Xeon® processor E5-2600 v3 product family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. One (or two) of the following Intel® Xeon® E5-2600 v3 processors based on the model.

۳۰MB (1x30MB) Level 3
NOTE: For Twelve-core processors.
۲۵MB (1x25MB) Level 3
NOTE: For Ten-core processors.
۲۰MB (1x20MB) Level 3
NOTE: For Eight-core processors.
۱۵MB (1x15MB) Level 3
NOTE: For Six-core processors.
۱۰MB (1x10MB) Level 3
NOTE: For Quad-core processors.
۵MB (1x5MB) Level 3
NOTE: For Dual-core processors.
NOTE: All processor models above list the L3 Cache associated with that particular processor.

Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family
NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

Upgradeable to two processors (24 cores)
NOTE: Total 6, 8, 12cores.

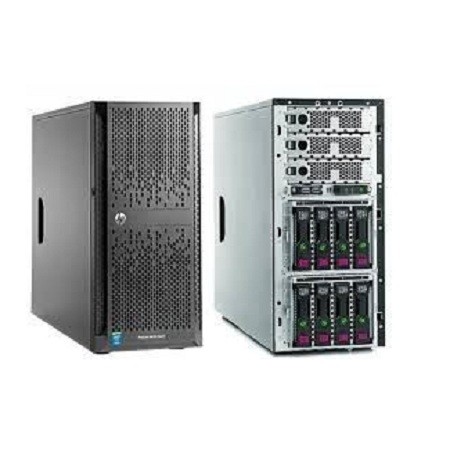

Up to 16 SFF Hard Drive Bays; Or 10 LFF Hard Drive Bays
Up to 16 DIMM slots
Redundant Power Supply
Tower to rack conversion
Optional optical drive (up to 1)
NOTE: When populate 10 LFF, not able to install Optical Drive.  Possible Configurations: 1) 8LFF +1 ODD + 1 Tape Drive (Full/Half), or 2) 9LFF + 1 ODD, or 3) 9LFF + 1 Tape Drive (Full/Half).

HP iLO (Firmware HP iLO4 2.0) 2GB NAND
NOTE: For more information, visit: http://www.hp.com/go/ilo.

Memory Protection
One of the following depending on model
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Type:
HP SmartMemory
DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM Slots Available
۱۶ Maximum Capacity (LRDIMM)
۲۵۶GB (16 x 16GB LRDIMM @2133MHz)
Maximum Capacity (RDIMM)
۵۱۲GB (16 x 32GB RDIMM @2133MHz)
NOTE: 32GB RDIMM is available in 2015
NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation.

HP Broadcom 5717 Dual-port 1Gb

HP Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HP ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.
NOTE: The UEFI System Utilities function is analogous to the HP ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hp.com/go/proliantuefi/docs.
UEFI enables numerous new capabilities specific to HP ProLiant servers such as:

Secure Boot
Operating system specific functionality
Support for > 2.2 TB (using GPT) boot drives
USB 3.0 Stack
Embedded UEFI Shell
Mass Configuration Deployment Tool using HP RESTful API.
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
For more information please visit http://www.hp.com/go/proliant/uefi.

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: HP UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

One of the following depending on model
Entry Models
HP Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
Base Models
HP Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
Performance Models
HP H240 FIO Smart Host Bus Adapter

One of the following depending on model
Optical Drive
Optional SATA 9.5mm DVD-ROM Optical Drive
Optional SATA 9.5mm DVD RW Optical Drive
NOTE: Optical is optional in entry, base and performance BTO models.
NOTE: ML150 Gen9 Slim ODD Enablement Kit (P/N: 784603-B21) is required for any DVD options.
Hard Drives
None ship standard

Hard Drive Bays
Up to 10 Non-hot plug SATA 3.5″ drives
NOTE: Mixing drive cage types is not allowed.

NOTE: All Pre-configured Models come populated with hard drive blanks installed. The 4LFF configurations includes 2 blanks and 8SFF includes 6 blanks. Additional hard drive blanks can be ordered using either P/N 666986-B21 for the HP LFF HDD Blank Kit or P/N 666987-B21 for the HP SFF HDD Blank Kit. These part numbers for single HDD blanks below are also provided should you require replacement HDD blanks for your server.
NOTE: NHP SATA is limited to B140i controller.
NOTE: When populate 10 LFF, not able to install any Tape Drive and Optical Drive. Possible Configurations: 1) 8LFF +1 ODD + 1 Tape Drive (Full/Half), or 2) 9LFF + 1 ODD, or 3) 9LFF + 1 Tape Drive (Full/Half).
NOTE: Must select two 4LFF NHP drive cage and 10LFF enablement kit if customer wants to support 10 LFF drives.
(۴) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)
(۸) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)
NOTE: 16SFF is limited to P840 controller.
NOTE: 10LFF is limited to H140i controller
NOTE: H240 8LFF/8SFF require 2 cable kit P/N: 784606-B21.
NOTE: P84016SFF require 2 cable kit P/N: 784608-B21.

One of the following depending on model

Hot Plug LFF SAS
۶۰TB(10x6TB)
Hot Plug LFF SATA
۶۰TB(10x6TB)
Hot Plug SFF SAS
۱۹٫۲TB(16×1.2TB)
Hot Plug SFF SATA
۱۶TB(16x1TB)
Non-Hot Plug LFF SATA
۳۰TB(10x3TB)
Hot Plug LFF SAS SSD
۱۶TB(10×1.6TB)
Hot Plug LFF SATA SSD
۱۶TB(10×1.6TB)
Hot Plug SFF SAS SSD
۲۵٫۶TB(16×1.6TB)
Hot Plug SFF SATA SSD
۲۵٫۶TB(16×1.6TB)

Video
۱ (rear)
Network RJ-45 (Ethernet)
۲
HP iLO Remote Management Network Port
۲Gb Dedicated
Micro SD Slot
۱ (internal)
NOTE: The Micro-SD slot is not a hot-pluggable device. Customers should not attempt to plug an Micro-SD card into the Micro-SD slot while the server is powered.
USB 3.0
۵ (۲ rear, 1 internal, 2 front )
USB 2.0
۳ (۲ rear, 1 internal)

ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Novell Certified
IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
Microsoft® Logo certifications
USB 3.0 Support
SMBIOS 2.7.1
ASHRAE A3

One of the following depending on model
HP 550W FIO Power Supply
HP 800W/900W Gold AC Power Input Module
NOTE: Each Redundant Power Supply Backplane can support up to two (2) power input modules.  Non-redundant configurations with a single power input module installed can provide up to 900W (200 – ۲۴۰VAC) and up to 550W (100 – ۱۲۷VAC) of power.  Redundant configurations with two power input modules installed can provide up to 800W (200 – ۲۴۰VAC) and up to 550W (100 – ۱۲۷VAC) of power.
HP Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs.  All Entry-Level power supply options have been designed specifically for HP ProLiant Gen9 Essential Series servers.
The HP 550W FIO Power Supply is the standard, non-redundant AC power supply option for most HP ProLiant Gen9 Essential servers.  It features Silver-level (89%) certified power efficiency with a set of features optimized for the Gen9 Essential-series rack and tower servers.
The HP 800W Gold (Redundant)/900W (Non-Redundant) AC Power Input Module with Power Backplane can be configured to support power redundancy in ProLiant servers that offer only a single power supply bay, providing additional protection against power loss.  With an 80 Plus Gold power efficiency rating (up to 92%), this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center.  Each power backplane option can support up to two (2) hot-plug AC power input modules.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HP Power Advisor Tool located at http://www.hp.com/go/hppoweradvisor.

One of the following depending on model
۱P model 2 fans (Non-redundant)
NOTE: Two (2) Non-hot plug, non-redundant fans ship as standard.
۲P model 3 fans (Non-redundant)
NOTE: Third fan is shipped with 2nd CPU Kit. Third fan is only required in 2P configurations.

Microsoft Windows Server
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Oracle Solaris
NOTE: For more information on HP’s Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/ML150Gen9.

Integrated Matrox G200eH2 video standard

۱۲۸۰ x 1024 (32 bpp)
۱۹۲۰ x 1200 (16 bpp)

Tower or Rack (5U)

HP Integrated Lights-Out (HP iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HP iLO. Learn more at http://www.hp.com/go/ilo.

UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hp.com/go/ProLiant/uefi.

HP RESTful API
RESTful API is an application programming interface. RESTful Web Service API served by iLO’s web server: Learn more at http://www.hp.com/go/restfulapi.

Intelligent Provisioning
Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at http://www.hp.com/go/intelligentprovisioning.

Embedded Remote Support
HP’s embedded remote support, when used with Insight Online direct connect or HP Insight Remote Support, allows HP ProLiant servers to transmit hardware events directly to HP or an HP Authorized Partner for automated phone home support. Learn more at http://www.hp.com/go/insightonline/info.

NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper.

HP Smart Update
Optimize firmware and driver updates with HP Smart Update solutions. Learn more at http://www.hp.com/go/smartupdate.

HP Systems Insight Manager (HP SIM)
HP SIM allows you to monitor the health of your HP ProLiant Servers and HP Integrity Servers, and also provides you with basic support for non-HP servers.
HP SIM also integrates with HP SUM to provide quick and seemless firmware updates. Learn more at http://www.hp.com/go/sim.

HP OneView Standard
HP OneView Standard can inventory, monitor, alert, and report on your G6, G7, Gen8, and Gen9 servers, while using the HP OneView user interface. Annual support is optionally available. Learn more at http://www.hp.com/go/oneview.

Scripting Tool Kit and Windows PowerShell
Provision 1 to many servers using your own scripts to discover and deploy them with HP Scripting Tool Kit for Windows and Linux or HP Scripting Tools for Windows PowerShell. Learn more at http://www.hp.com/go/ProLiantSTK or http://www.hp.com/go/powershell.

HP RESTful Interface Tool
HP RESTful Interface tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at http://www.hp.com/go/restfulapi.

HP iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp.

HP Insight Online
HP Insight Online, available at no additional cost as part of your HP warranty, Care Pack or contractual support agreement with HP, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hp.com/go/insightonline/info.

Power-on password
Setup password
Serial interface control
Power switch security
Administrator’s password
TPM 1.2
UEFI
