Processor family :
NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.
Intel® Xeon® processor E5-2600 v3 product family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. One (or two) of the following Intel® Xeon® E5-2600 v3 processors based on the model.
Entry Processors
Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit
Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit
Base Processors
Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit
Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit
Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) Processor Kit
Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) Processor Kit
Performance Processors
Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit
Entry Processors
Intel® Xeon® E5-1603v3 (2.8GHz/4-core/10MB/140W) Processor Kit
Intel® Xeon® E5-1620v3 (3.5GHz/4-core/10MB/140W) Processor Kit
Intel® Xeon® E5-1650v3 (3.5GHz/6-core/15MB/140W) Processor Kit
NOTE: Up to ۱ processor supported. Mixing different processor models is not supported.
|
|
Cache Memory :
۳۰MB (1x30MB) Level 3
NOTE: For Twelve-core processors.
۲۵MB (1x25MB) Level 3
NOTE: For Ten-core processors.
۲۰MB (1x20MB) Level 3
NOTE: For Eight-core processors.
۱۵MB (1x15MB) Level 3
NOTE: For Six-core processors.
۱۰MB (1x10MB) Level 3
NOTE: For Quad-core processors.
۵MB (1x5MB) Level 3
NOTE: For Dual-core processors.
NOTE: All processor models above list the L3 Cache associated with that particular processor.
|
|
Chipset :
Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family
Intel® E5-1600v3 Processor
NOTE: This is a 140W processor which need to order with the ML110 Gen9 System fan upgrade kit – ۷۸۹۶۵۴-B21.
NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.
|
|
Upgradeability :
Up to 16 SFF Hard Drive Bays, Or 8 LFF Hard Drive Bays
Up to 8 DIMM slots
Redundant Power Supply
Optional optical drive (up to 1)
|
|
On System Management Chipset :
HP iLO (Firmware HP iLO4 2.1) 2GB NAND
NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.
|
|
Memory Protection :
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
|
|
Memory :
Type:
HP SmartMemory
DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM Slots Available 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum Capacity (LRDIMM)
۱۲۸GB (8 x 16GB LRDIMM @2133MHz)
Maximum Capacity (RDIMM)
۲۵۶GB (8 x 32GB RDIMM @2133MHz)
NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation.
|
|
Network Controller :
HP Broadcom 5717C0 Dual-port 1Gb
|
|
HP Server ROM :
HP Server UEFI /Legacy ROM
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HP ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.
NOTE: The UEFI System Utilities function is analogous to the HP ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hp.com/go/proliantuefi/docs.
UEFI enables numerous new capabilities specific to HP ProLiant servers such as:
Secure Boot
Operating system specific functionality
Support for > 2.2 TB (using GPT) boot drives
USB 3.0 Stack
Embedded UEFI Shell
Mass Configuration Deployment Tool using HP RESTful API.
PXE boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
For more information please visit http://www.hp.com/go/proliant/uefi.
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
NOTE: HP UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.
|
|
Storage Controller :
One of the following depending on model
Entry Models
HP Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
Base Models
HP Dynamic Smart Array B140i Controller
NOTE: B140i can’t mix with any standup internal controller.
|
|
Internal Storage Devices :
One of the following depending on model
Optical Drive
Optional SATA 9.5mm DVD-ROM Optical Drive
Optional SATA 9.5mm DVD RW Optical Drive
NOTE: Optical is optional in BTO models.
Hard Drives
None ship standard

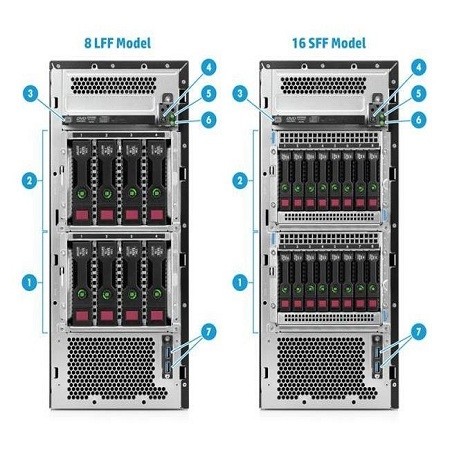

Hard Drive Bays
Up to 4 Non-hot plug SATA 3.5″ drives
NOTE: Mixing drive cage types is not allowed.
NOTE: All Pre-configured Models come populated with hard drive blanks installed. The 4LFF configurations includes ۱ blanks and 8SFF includes ۷ blanks. Additional hard drive blanks can be ordered using either P/N 666986-B21 for the HP LFF HDD Blank Kit or P/N 666987-B21 for the HP SFF HDD Blank Kit. These part numbers for single HDD blanks below are also provided should you require replacement HDD blanks for your server.
NOTE: NHP SATA is limited to B140i controller.
(۴) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)
(۸) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)
|
|
Maximum Internal Storage :
One of the following depending on model
Hot Plug LFF SAS
۴۸TB(8x6TB)
Hot Plug LFF SATA
۴۸TB(8x6TB)
Hot Plug SFF SAS
۱۹٫۲TB(16×۱٫۲TB)
Hot Plug SFF SATA
۱۶TB(16x1TB)
Non-Hot Plug LFF SATA
۲۴TB(8x3TB)
Hot Plug LFF SAS SSD
۱۲٫۸TB(8×۱٫۶TB)
Hot Plug LFF SATA SSD
۱۲٫۸TB(8×۱٫۶TB)
Hot Plug SFF SAS SSD
۲۵٫۶TB(16×۱٫۶TB)
Hot Plug SFF SATA SSD
۲۵٫۶TB(16×۱٫۶TB)
|
|

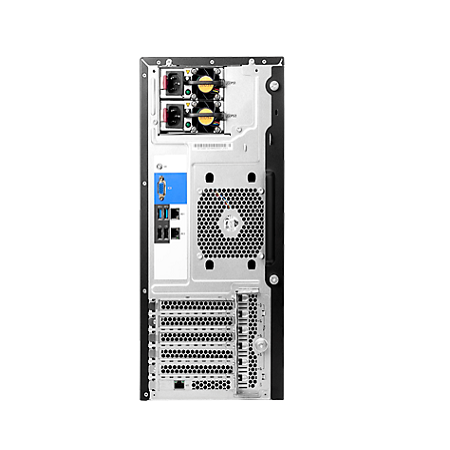

Interfaces :
Video
۱ (rear)
Network RJ-45 (Ethernet)
۲
HP iLO Remote Management Network Port
۱Gb Dedicated
Micro SD Slot
۱ (internal)
NOTE: The Micro-SD slot is not a hot-pluggable device. Customers should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered.
USB 3.0
۵ (۲ rear, 1 internal, 2 front )
USB 2.0
۳ (۲ rear, 1 internal)
|
|
Industry Standard Compliance :
ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Novell Certified
IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
Microsoft® Logo certifications
USB 3.0 Support
SMBIOS 2.7.1
ASHRAE A3
|
|
Common Slot Power Supply :
One of the following depending on model
HP 350W ATX-Gen9 Power Supply FIO Kit
HP 550W ATX-Gen9 Power Supply Kit
HP 750W CS Gold Ht Plg Pwr Supply Kit
NOTE: The first 750W CS Gold Ht Plg Pwr Supply Kit requires the RPS Enablement Kit.
NOTE: The RPS Enablement kit will support two power supplies.
HP Entry-Level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs. All Entry-Level power supply options have been designed specifically for HP ProLiant Gen9 Essential Series servers.
The HP 550W FIO Power Supply is the standard, non-redundant AC power supply option for most HP ProLiant Gen9 Essential servers. It features Silver-level (89%) certified power efficiency with a set of features optimized for the Gen9 Essential-series rack and tower servers.
All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
To review the power requirements for your selected system, please use the HP Power Advisor Tool located at http://www.hp.com/go/hppoweradvisor.
Power specifications and technical content for all HP Server power supplies can be found at http://www.hp.com/go/proliant/powersupply.
|
|
System Fans :
One of the following depending on model
۱P model
۲ fans (Non-redundant)
NOTE: One (1) Non-hot plug, non-redundant fans ship as standard.
|
|
Operating Systems and Virtualization Software Support for ProLiant Servers :
Microsoft Windows Server
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
NOTE: For more information on HP’s Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/ML10Gen9.
|
|
Graphics :
Integrated Matrox G200eH2 video standard
۱۲۸۰ x 1024 (32 bpp)
۱۹۲۰ x 1200 (16 bpp)
|
|

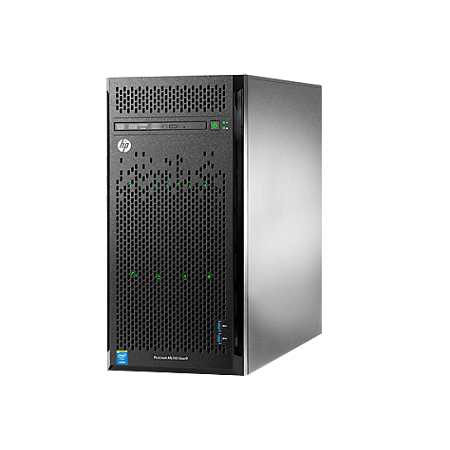

Form Factor :
Tower (4.5U)
|
|
Embedded Management :
HP Integrated Lights-Out (HP iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HP iLO. Learn more at http://www.hp.com/go/ilo.
UEFI
Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hp.com/go/ProLiant/uefi.
HP RESTful API
RESTful API is an application programming interface. RESTful Web Service API served by iLO’s web server: Learn more at http://www.hp.com/go/restfulapi.
Intelligent Provisioning
Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at http://www.hp.com/go/intelligentprovisioning.
Embedded Remote Support
HP’s embedded remote support, when used with Insight Online direct connect or HP Insight Remote Support, allows HP ProLiant servers to transmit hardware events directly to HP or an HP Authorized Partner for automated phone home support. Learn more at http://www.hp.com/go/insightonline/info.
NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper.
|
|
HP Server utilities :
HP Smart Update
Optimize firmware and driver updates with HP Smart Update solutions. Learn more at http://www.hp.com/go/smartupdate.
HP Systems Insight Manager (HP SIM)
HP SIM allows you to monitor the health of your HP ProLiant Servers and HP Integrity Servers, and also provides you with basic support for non-HP servers.
HP SIM also integrates with HP SUM to provide quick and seemless firmware updates. Learn more at http://www.hp.com/go/sim.
HP OneView Standard
HP OneView Standard can inventory, monitor, alert, and report on your G6, G7, Gen8, and Gen9 servers, while using the HP OneView user interface. Annual support is optionally available. Learn more at http://www.hp.com/go/oneview.
Scripting Tool Kit and Windows PowerShell
Provision 1 to many servers using your own scripts to discover and deploy them with HP Scripting Tool Kit for Windows and Linux or HP Scripting Tools for Windows PowerShell. Learn more at http://www.hp.com/go/ProLiantSTK or http://www.hp.com/go/powershell.
HP RESTful Interface Tool
HP RESTful Interface tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at http://www.hp.com/go/restfulapi.
HP iLO Mobile Application
Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp.
HP Insight Online
HP Insight Online, available at no additional cost as part of your HP warranty, Care Pack or contractual support agreement with HP, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hp.com/go/insightonline/info.
|
|
Security :
Power-on password
Setup password
Serial interface control
Power switch security
Administrator’s password
TPM 1.2
UEFI
|
